You need to read the rest of this article to understand this section.
I had some extra computation credits left, so I tested an extra 36.96 trillion points on some VMs. These computations include
The mandelbrot set is a fractal defined as a set of complex numbers c that does not diverge to infinity when iterated infinitely through f(z) = z2 + c, starting at z = 0. This webpage will not attempt to explain the fractal, there are existing resource that does an excellent job explaining what the fractal is. I will assume from now that you have a basic understanding of the mandelbrot set
There exists no analytical solution for the area of the mandelbrot set; no closed form solution or well-behaved series. Although from I know, the area of the mandelbrot set has little discovered implications in mathmatics, it is still a fun and interesting challenge to try to estimate the area of the fractal
The best existing way to estimate the area of the mandelbrot set is to evaluate a very large number of points within a certain area (the area the entire set encompass) and multiply the percentage of points that is in the set by the area evaluated.
I have written a computer program that does exactly that and does its best job estimating the area of the fractal
My methodology and result will be explained later in the page, I want to first mention other attempts that was made and their results

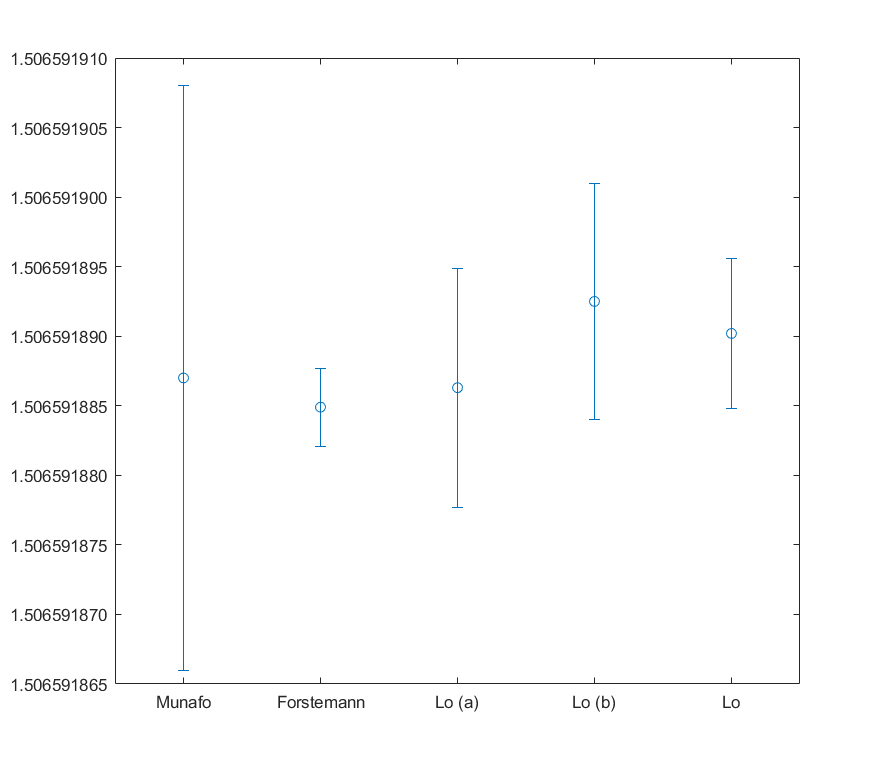

The "error" mentioned above is 95% confidence of mean. Since numbers above is averaged together from multiple runs (which are in itself means). The 95% confidence range is σ(1.96)(√n)-1, where σ is the standard deviation between the results of multiple runs and n is the number of runs.
The reason that my estimation has a tighter confidence interval with less values is because I tested fewer grids with more pixels each rather than more grids with fewer pixels each.
If you want to use my code, the readme in the aforementioned repository will provide more specific information
I have created a simple, singlethreaded, c program that estimates the area of the fractal. The essence of the program is very simple, it tests a large amount of uniformly distributed complex numbers within a certain range for its membership in the mandelbrot set and count the number of points that is a member, not a member, or undecided (potentially chaotic, or bad-having) pixels.
There are two main methods that the program does the calculation,
The source of randomness in my programs are acquired from the xorshift128+ pseudorandom number generator. This is the same one the V8 JavaScirpt engine uses; in fact, my implementation is heavily based from this. This is the article that mainly helped me.
The random function simply generates a random 64-bit word, this is converted into a floating point double to be used via some bit-masking.
The PRNG is seeded with system time, some user defined constants, and /dev/urandom on unix-like systems
The membership function first checks whether the number is in bound by doing the following checks for input x
If any of the conditions is not satified, the function returns not a member
The function then checks if the point is within the main cardioid or the main bulb, using the shape's bounding boxes to help speed up some calculations. Desmos graphs. Empirically, this greatly speeds up the program's speed
The function then starts a loop where the number is iterated through the iterator function. An orbit detection variable is also started where the number is only iterated every two main iterations. After this, there are 4 ways the function can return
The thresholds for "close enough" for convergence and orbits are user defined, they have to be set to balance between not returning erroneous data (or doing it extremely rarely) but sufficiently increase performance.
Results are written into a log file that can be analyzed by a node.js script
For large grid calculations, checkpointing can be enabled to write the result every set amount of scanlines. In case that the program crashes, a new program can start there.
The program test points from the real number line to 1.15i. It starts at -2+0i and goes positive real before wrapping back to another higher imaginary scanline
The accuracy of the value increases as the grid size and points tested increases.
I changed the dwell limit between grid sizes and even between each runs pretty arbitrarily, additionally, the number of runs per grid sizes are also pretty inconsistent; because of this, a table will not be really practical, but I will leave in one just to show the relationship between grid size, points tested, and estimated error
grid size points (log) estimated error
8192 10.0648 1.71e-6
16384
32768 10.1101 7.58e-7
65536 11.2350 1.94e-7
131072 11.2764 1.05e-7
262144 12.0412 3.76e-8
524288
1048576 12.6433 8.49e-9
2097152
- log is log base 10
- estimated error is the number that
includes undecided points
The first time I ran the 1048576 grid, my equivlance threshold was set too high (2-16 for orbit and 2-32 for convergence) resulting in too many points being mistaken for member.
Error is inherent to estimations like this. Although the percision limit for floating point (less than 2-52 for this application) should not cause any problems at this level of percision since the equivalence threshold of 2-32 for orbit and 2-48 for convergence produced similar results to other people's implementation.
Four instances of the 1048576 grid was ran on a DigitalOcean 4-core CPU optimized droplet, yielding my best estimate. Each instance took about 1.92 millions seconds or 22 days, the average computation rate was 574000 complex values per second per core. The droplet costed about 60 US dollars for the time of the computation.
The final estimate uses the value that includes undecided pixels as part of the set. More data can be found in this text file (UTF-8 required).
or 1.5065918857±0.0000000085 or 1.5065918857(85)
